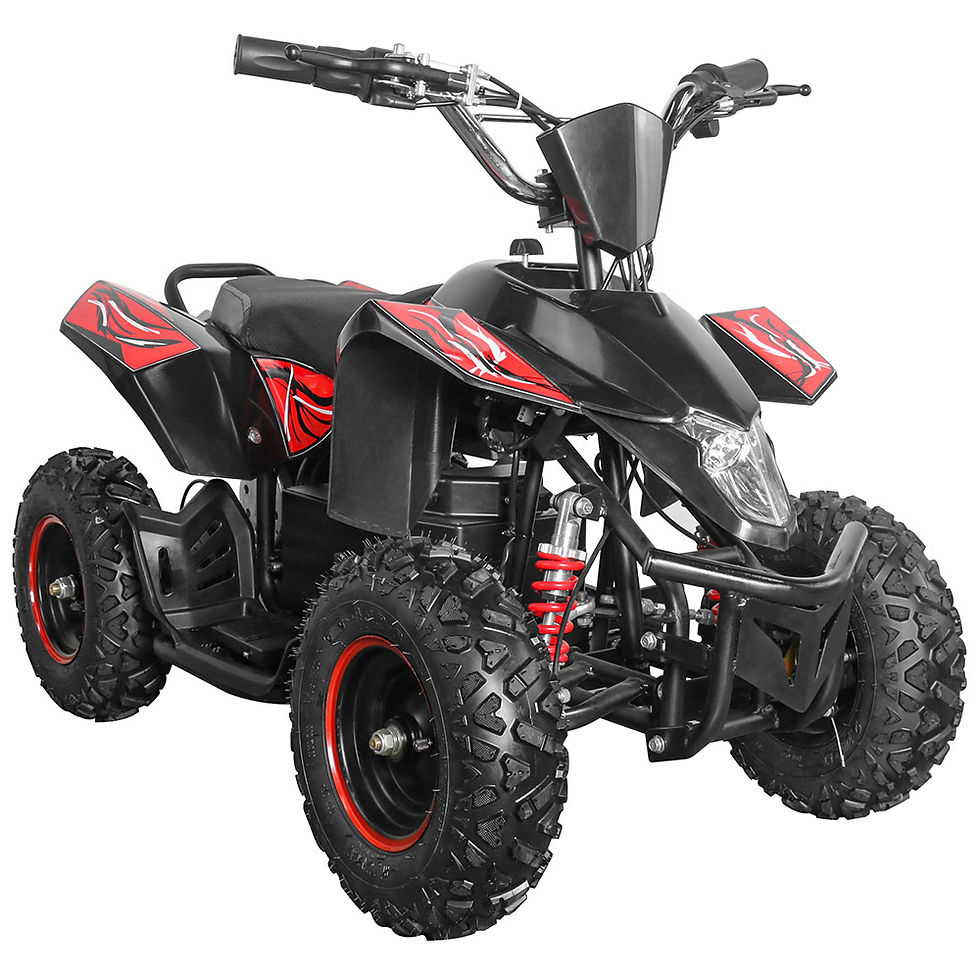

500w Red Kids Electric Mini Quad Bike

Motor: 36V, 500W brush motor

Battery: 36V, 12Ah lead acid battery

Rated Speed(RPM): 2500r/min

Rated Current: ≤18.3A

Rated torque: 1.7N.M

Drive: Chain drive

Suspension: Dual Spring Damper;

Single Spring Damper

Brakes F/R: Dual Disc brake ; Single Disc Brake

Tires F/R: F:4.10-6;R:4.10-6 , (6 inch )

Seat Height: 53cm

Wheelbase: 86cm

Ground Clearance: 8cm

G.W/N.W: 53/49kgs

Max.Load: 50kgs

Max speed: 20km/h

Charging time: 6-8Hours

Brake distance: 20km/h ≤4m

L*W*H: 104*66*70cm

Packing size: 115*58*60cm

Container Load: 60pcs/20ft,160pcs/40HQ
